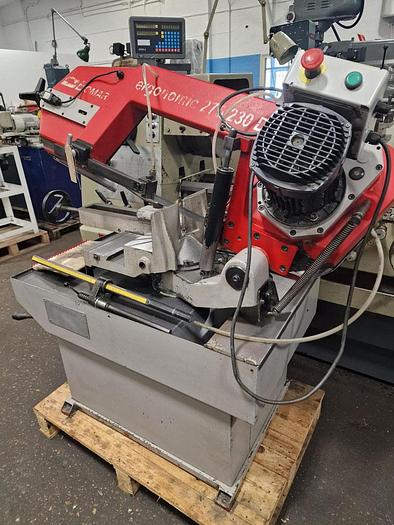

2008 BOMAR ERGONOMIC 275.230 DG HORIZONTAL BANDSAW

BOMAR ERGONOMIC 275.230 DG HORIZONTAL BANDSAW Very high cutting accuracy. With this machine, cuts of 90° as well as miter cuts left up to 45° and right up to 30°, are continuously possible. (swivel range left 45° and right 60°)

Drive power: 1.1 / 1.5 KW 400V / 50 Hz

Total1 connected load: 2.7 kVA

Belt speed: 40 / 80 m/min

Saw band dimension: 2720 x 27 x 0.9 mm

Smallest diameter: 5 mm

Remaining piece length: 20 mm

Material support height: 760 mm

Dimension: 1400 x 640 x 1270 mm

Weight: 310 kg

Basic equipment

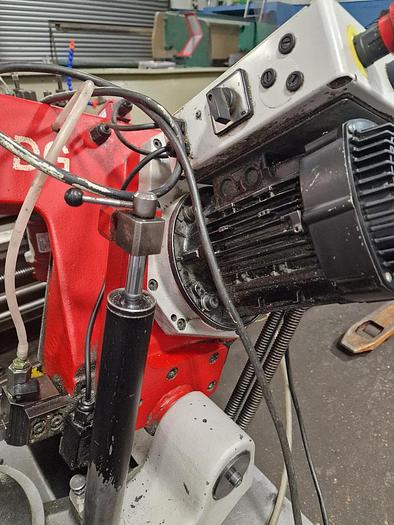

Lowering of the saw arm via hydraulic cylinder; stepless adjustment

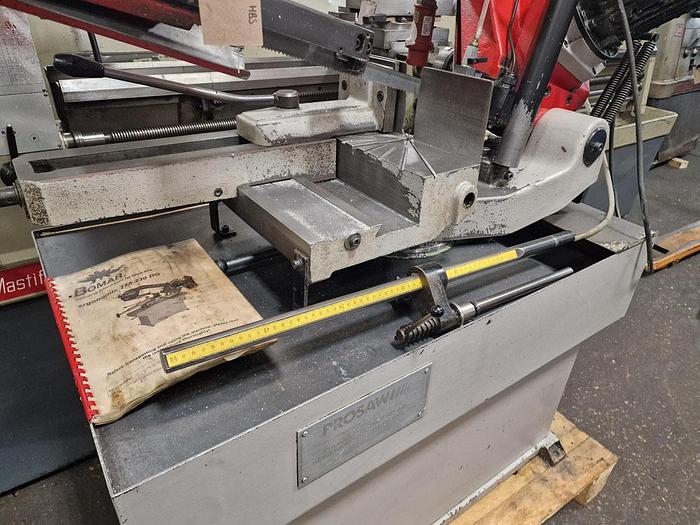

easy and fast clamping of the material due to a quick clamping device

easy, manual shifting of the vice R/L

electrical belt tension monitoring with saw belt breakage control

Coolant pump with dual feed to the saw blade guides

Carbide saw band guides and guide rollers

Measuring stop 500mm

Driven chip brush
